Traffic and Safety Barriers2R Barrier Hand Rail

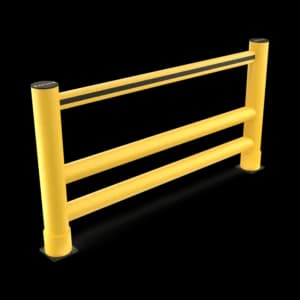

2R Barrier Hand Rail — medium-height traffic separation
Vehicle class
5 t+ industrial forklift traffic
Impact rating
Medium to high impact absorption — up to 40,000 J on XL profiles
Temperature
-40°C to +60°C
Material
PolyCore™ polymer
Overview
2R Barrier Hand Rail is a medium-height traffic separation barrier from the Raysan PolyCore™ range, distributed in the United States by NexGen Barrier. It is engineered for facilities where forklift traffic, pallet trucks, and pedestrians share the same floor space. An integrated hand rail provides pedestrian guidance without a separate guardrail system.
The barrier absorbs impact within the polymer rail and post, limiting transfer of force into floors, rack uprights, and building structures. After strikes below the endurance limit, the profile returns to shape — unlike steel barriers that dent permanently and often need full replacement after a single major hit.
Installation
Posts are anchored to concrete with supplied fixings. Rails slide into posts without welding. Layout changes require only hand tools — no hot work permit.
Supply chain
Manufactured by Raysan Flexible Barrier. Supplied and installed in the US by NexGen Barrier — East Rutherford, NJ.
Key Features
- PAS 13 certified PolyCore™ polymer — TÜV-NORD tested
- Signal yellow, UV-stable profile with no paint or coating required
- Modular rail lengths from 320 mm to 3,250 mm
- Multi-impact rebound below the calculated endurance limit
- Separates forklift lanes from pedestrian walkways at mid height
Typical Applications
Where facility managers specify 2R Barrier Hand Rail in New Jersey, Pennsylvania, New York, Connecticut, Delaware, and Maryland and nationwide projects.
- Defined pedestrian walkways in warehouses
- Production areas with guided foot traffic
- Mezzanine and platform edges
- Visitor routes through active facilities
